Product Details
＋

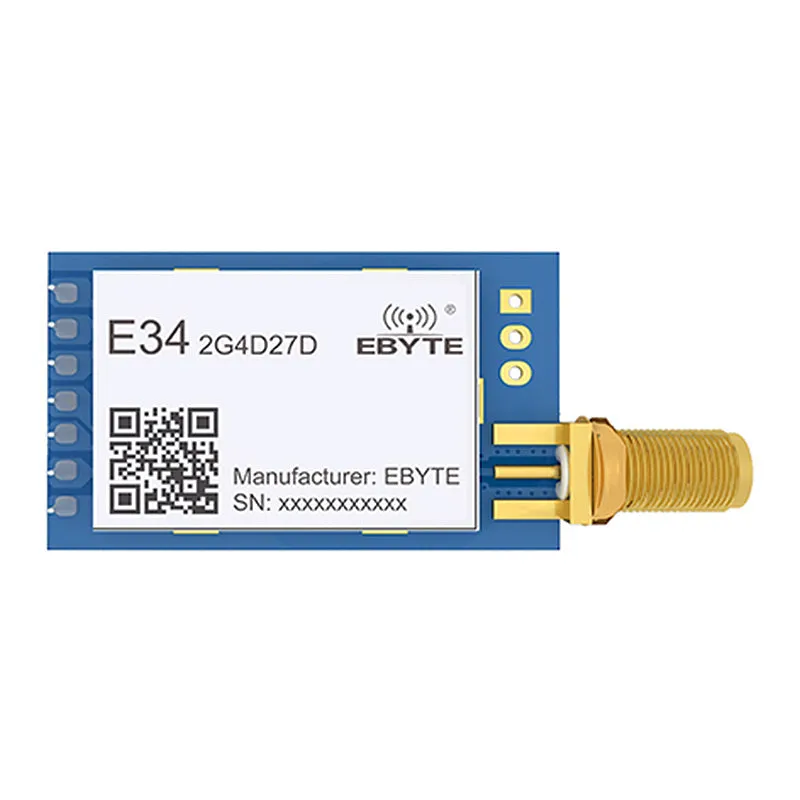

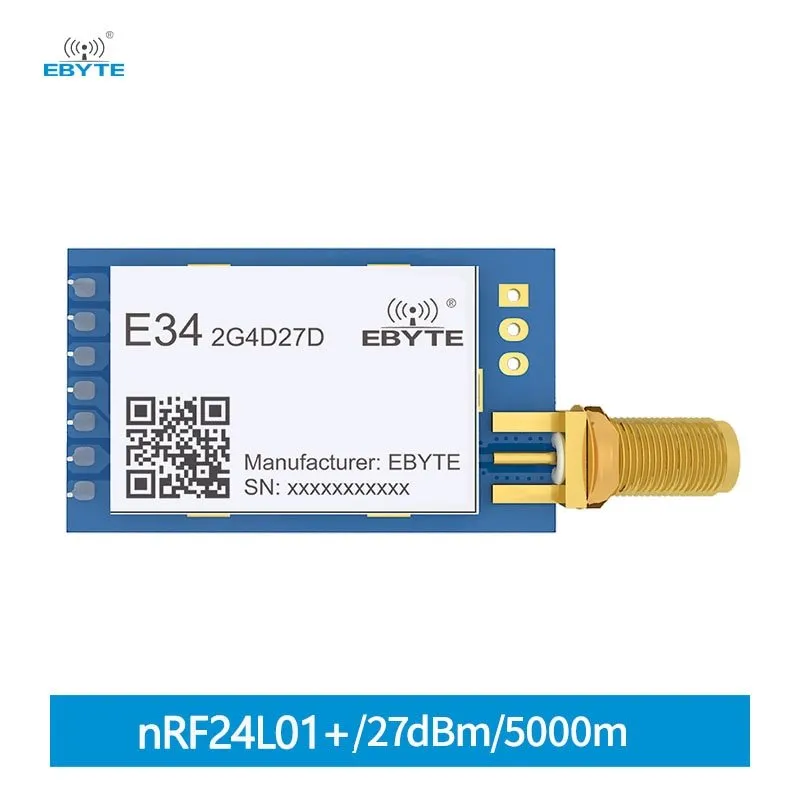

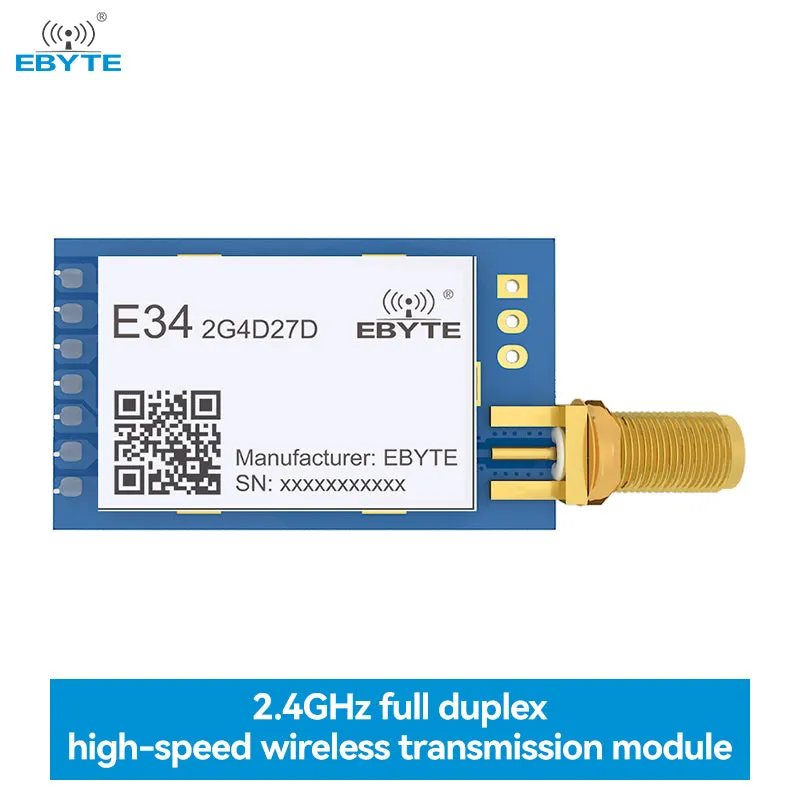

The nRF24L01 2.4G UART Wireless Module E34-2G4D27D is a high speed full duplex transmission module that operates at 2.4–2.518GHz. It offers a maximum transmission power of 27dBm and a wireless transmission range of up to 5km.
Brand Name: EBYTE
Origin: Mainland China
Condition: New
Type: Drive IC
Model Number: E34-2G4D27D
Operating Temperature: -40℃-85℃
Package: DIP
Type: UART Wireless Module
IC: nRF24L01
Weight: 5g
Power Supply Voltage: Max:5.5V
Blocking Power: Max:10dBm
Communication Level: Typ5.0

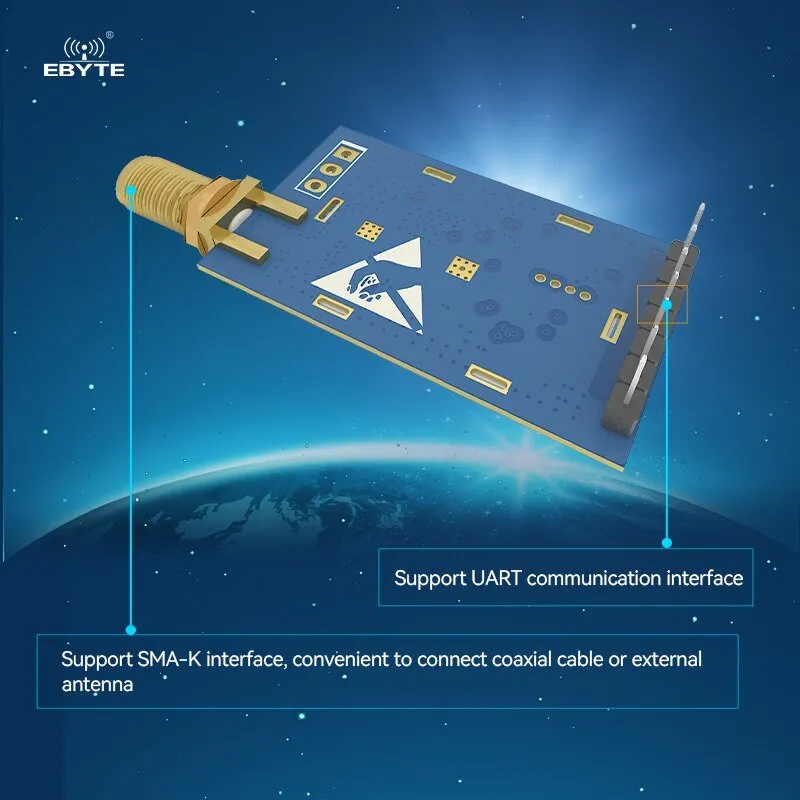

Antenna: SMA-K

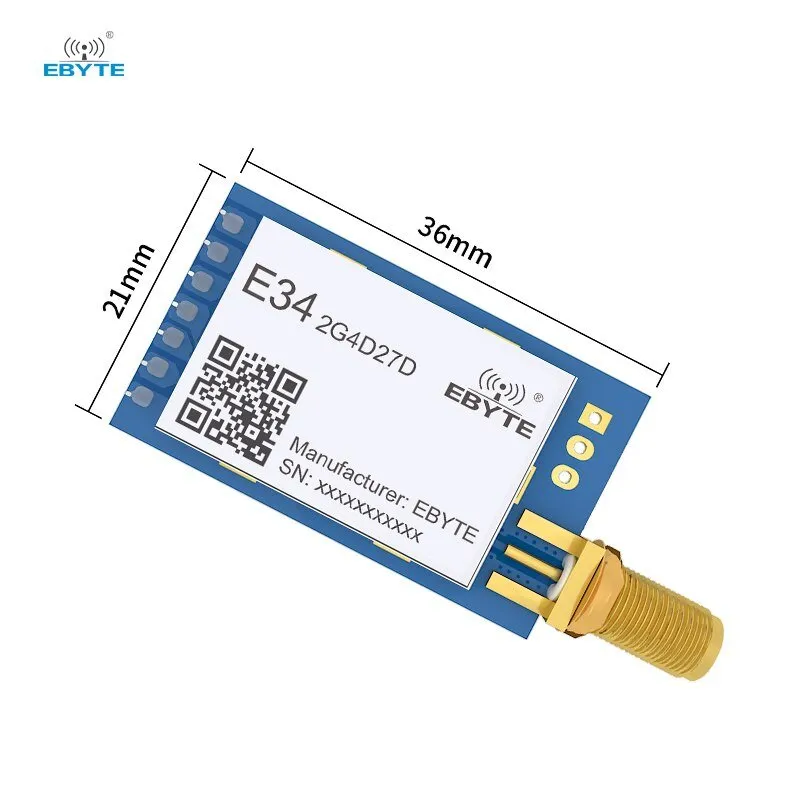

Size: 21*36 mm
| Hardware Parameter | Value | Remark |
|---|---|---|
| Size | 21 * 36 mm | - |
| Antenna type | SMA-K | 50 ohm impedance |
| Communication interface | UART | TTL |
| Package | DIP | - |
| Buffer Size | 2048 Byte | In continuous transmission mode, there is no limit to the packet length Unlimited length |
| FIFO | 29Byte | Maximum length of single transmission |
| RF Parameter | Value | Remark |
|---|---|---|
| Working frequency | 2400~2518 MHz | Default:2400MHz |
| Transmitting power | 27 dBm | - |
| Receiving sensitivity | -102 dBm | Air data rate: 0.3kbps |
| Air data rate | - | Automatic software optimization, automatic adaptation to baud rate |
| Test distance | 5000m | Test condition：clear and open area, antenna gain: 5dBi，antenna height: 2.5m，baud rate 9600 |
