Product Details
＋

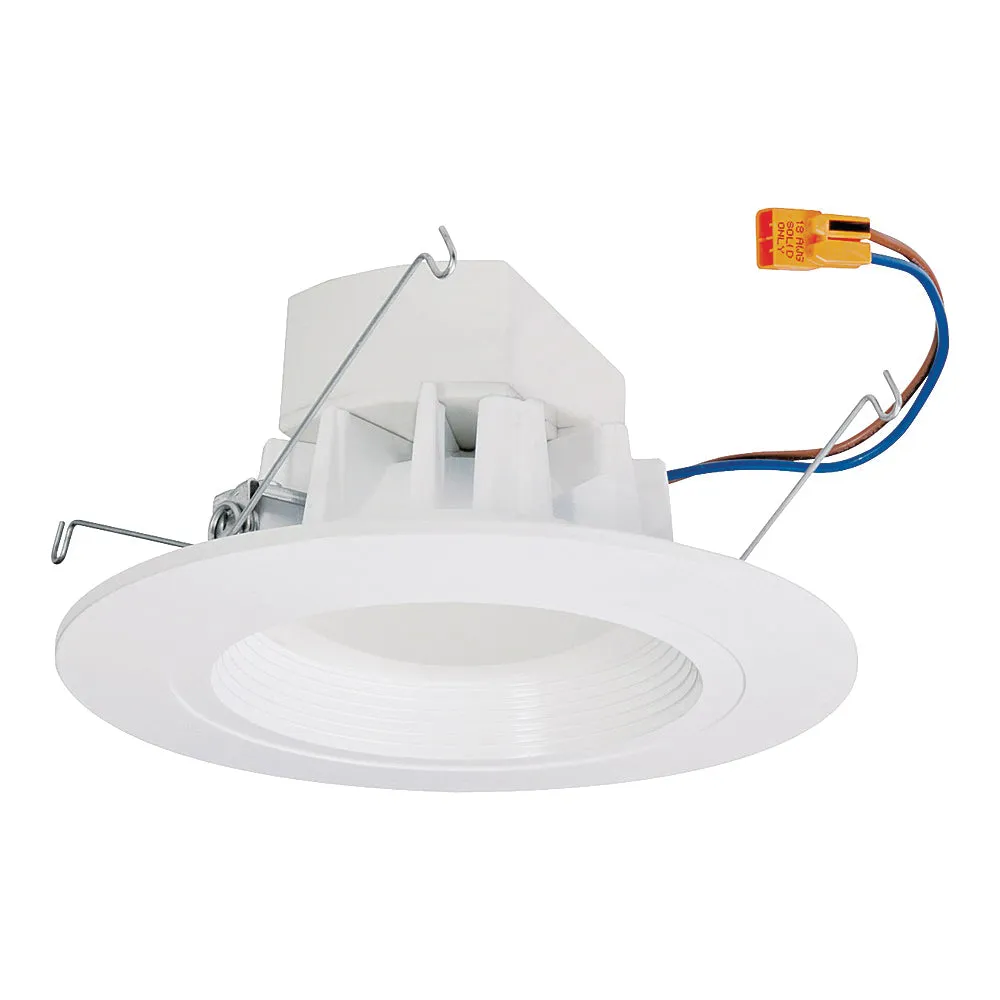

The Halo RL56 Series is a complete LED Baffle-Trim Module for 5 in and 6 in aperture recessed downlights. RL56 is designed for use in new construction, remodel and retrofit installation in Halo, All-Pro and other compatible 5 and 6 in housings. The integral LED driver offers 120 V dimming capability. The RL56 lens provides uniform illumination and wet location listing. Precision designed to make any housing Air-Tite™ for added HVAC savings and code compliance.
Product Details
Manufacturer:
Manufacturer's Part Number: RL560WH6930R
Show me more
Product Features
- Dimmable to 5% with select dimmers
- 50,000 hrs with 70% maintained lumens
- Integrated light engine with baffle trim
- Easy installation with universal mounting clips
- Features high brightness, diffusing, optical quality lens
Product Specifications
| Color | White |
| Dimensions | 5 to 6 in Dia |
| Material | Aluminum |
| Specifications | 9.4 W, 610 Lumens, 90 CRI, 3000K, 50,000 hr, LED Light |
| Suitable for | Halo, ALL-PRO 5 in and 6 in Standard and Shallow Recessed Housings |
Product Documents
| Catalog |
